General surgery, urology, chest surgery, trauma, spine surgery, abdominal surgery, orthopedics, bone reduction and fixation, endoscopy and surgery. Intervertebral disc angiography and angioplasty. It can Widely use in operating room, X-ray department, emergency room, intervention and peripheral angiography.

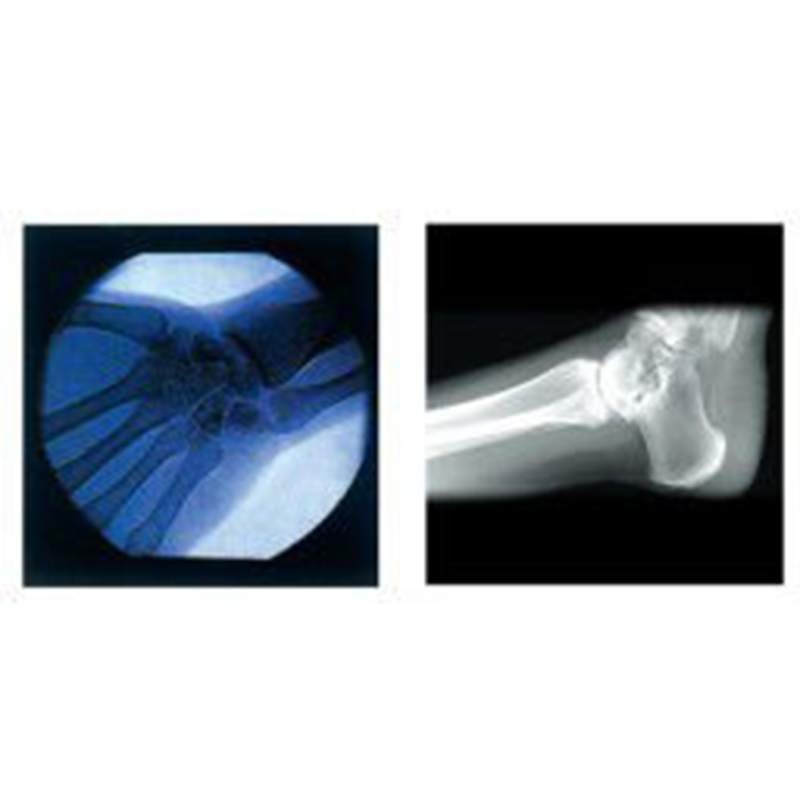

1. Digital noise reduction, last image hold, image saving, image inversing.
2. High frequency inverter Generator, low radiation, micro focus, stable performance, easy get high quality x-ray image, can support long time fluoroscopy mode.
3. 9″ fields of vision, facilitate diagnosis of partial enlargement.
4. range of camera rotation 360°
5. 10.4″LCD friendly interface, control board rotation:(180°,L90°,R90 °)
6. Equipped with block line device, prevent roller, avoid accident.
7. With a steering handle, have parallel movement function
8. Pulse perspective, can reduce about half the x-ray doses, less damage.
9. Big wide space, convenient operation and operation.
10. Screen and x-ray machine are integrated
| Inverter | 110kV,3.5kW ,40kHz |
| Operation mode | Fluoroscopy mode40~110Kv, 0.5~5mA(KV manual and automatic);
Pulsed fluoroscopy 40~110kV, 0.5~5mA; Boost fluoroscopy 40~110kV, 5~10mA; Photography 40~110kV, 1~250mAS |
| X ray generator | high frequence X-ray generator: Italian IMD brand, IMD inverter, IMD filament board
linear guide and high-density grid import from South Korea, fixed anode, dual-focus: 0.6mm/1.5mm |
| Image intensifier | 9” Japan Canon Brand |
| CCD | CCD camera, Japanese Watt Brand, 360° rotating . |
| Standard configuration | High resolution CCD camera:1set
x-ray generator:1set 9” Image intensifier:1set Digital Noise reduction system 15” High resolution monitor :1set Mobile stand :1 set Store 8images. |
| Mechanical motion specifications: | Vertical:travel:0~400mm, Horizontal:travel:0~200mm
(Electric for optional) Range of C-arm rotation Angle:≥115° wag: ≥±12.5° |
| C-arm dimension | Distance of focal spot to image generator is 1000mm,
Depth are ≥650mm Mobile stand :1800mm*800mm*1850mm |
| NO | DESCRIPTION |
| 1 | With HF & HV generator, inverter, and High quality image intensifier, the x ray
generator can work stably. It also reduces the damage for the doctors caused by radiation. |
| 2 | 10.4″LCD friendly interface control board: easy operation and can be rotated to 180°
(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in English, which will improve the efficiency of fault diagnosis. |
| 3 | With a steering handle, it can adjust the direction quickly when moving. And parallel
movement function is also available. |
| 4 | Equipped with unique block line wheels, it can avoid accident when the machine moves. |
| 5 | Canon brand Image intensifier: 9″fields of vision:it facilitates diagnosis of
partial enlargement. |
| 6 | Original Korean linear slide rail can make the movement of the machine flexibly. |
| 7 | Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased. |
| 8 | Japanese Watt Brand CCD camera with rotation function: range of camera rotation:360°. |
| 9 | Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis. |
| 10 | Large free space in arc: the space can reach 800mm, which is convenient for operation. |
