Introduction

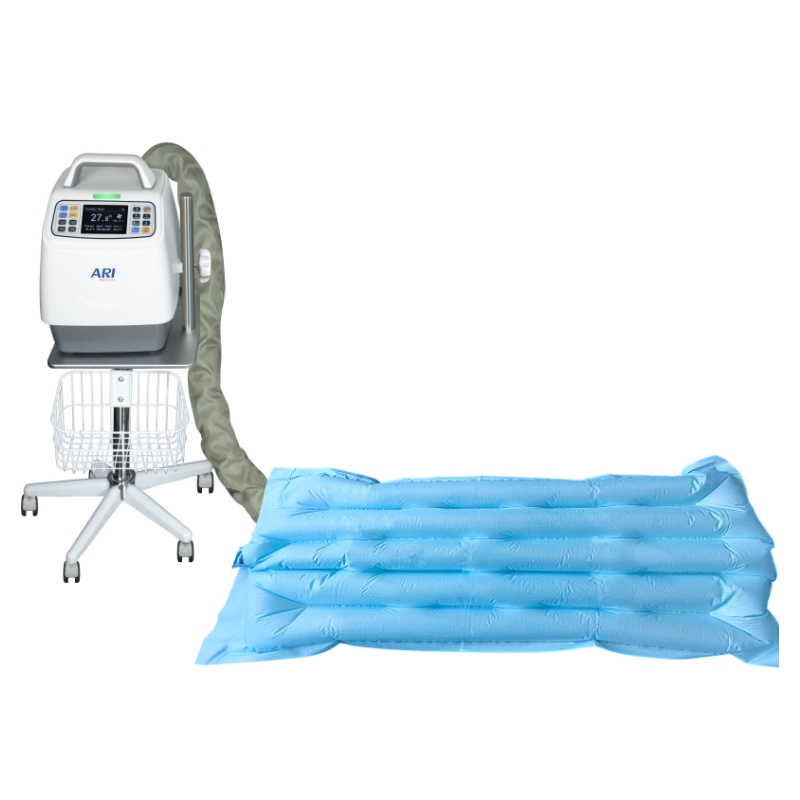

Warming Blanket utilizes the convection of air to transmit the hot air generated by the main unit to the disposable blanket through the pipeline, so that the heat energy is evenly distributed and transmitted to the patient’s body surface covered by the blanket to achieve

the eff etc. of heat preservation or heating for prevention and treatment of hypothermia in patients. The blanket is made of non-woven fabric and melt-blown cloth delicate material. It is with scientific air outlet arrangement; good temperature transfer eff ect. It is widely used in Operation Room, ICU and other wards. Color LCD screen and quick setting button makes it user friendly.

Features

  1. Multiple Wind Speed. 8 adjustable wind speed can apply to different patients in different environments
  2. Multiple Temperature Control Protection. Dual hardware and software temperature protection
  3. History Record: More than 10,000 logs for necessary search
  4. Air Purification Function. With G4 (EN779) grade air filter and plasma air purification function.
  5. Warming Blankets: 16 kinds disposable blankets optional

Technical Specifications

MODEL  AIW-210A
Temperature setting ℃: 32.0 – 41.0 ℃; ℉: 95.0 – 105.8 ℉
Temperature deviation ℃: ≤±1 ℃; ℉: ≤±1.8 ℉
Temperature increment ℃: 0.1 ℃; ℉: 0.1 ℉
Optional unit ℃ / ℉
Warming up time ＜4 min
Working mode Continuous heating
Operation time Real time display
Alarm Over heat, low temperature, no operation, fan error, temperature sensor error
Display 3.5-inch color LCD display
Air volume 8 level
Natural wind function Available
Quick temperature setting 4 Temp.
Overheat protection function Dual hardware and software protection, real-time temperature monitoring and over 50±5°C hardware forced power-off protection
Alarm volume 8 level
Mute time 2 minutes
History record 10000 pcs
Ambient temperature function Available
Language Chinese and English
Air Purification Plasma air purification
Blanket 16 kinds disposable blankets optional
Filter G4 (EN779) grade
Power supply AC220 V, 50/60 Hz
Power consumption 850 VA
Operation environment Temperature: 10-40 ℃

Humidity: 30-75 %

Atmosphere: 70.0-106.0 kPa
Transportation and storage environment Temperature: -20 – 55 ℃

Humidity: 10-93 %

Atmosphere: 50.0-106.0 kPa
Protection class Class I, Type BF, IPX2
Dimension 260*325*325 mm
Weight 6 kg

Blanket Updates

  1. Outlet temperature:43℃ for better heating.
  2. Noise level: 55 dB for quieter operation.
  3. Added filter replacement reminder.
  4. 17 disposable and 9 reusable blankets available.
  5. Air hose: 2.2 m, scratch-resistant, stain-resistant, insulated, and safe.
  6. Equipped with clips to secure hose and blanket.

Optional Blankets (17 kinds Disposable Blankets)

SN. Item Model Size (cm)
1 Whole body blanket M200100 200*100
2 Adult Full Path blanket M200110 200*110
3 Adult blanket M195100 195*100
4 Full-arm blanket M18568 185*68
5 Torso warming blanket M11080 110*80
6 Shoulder surgical blanket M18080 180*80
7 Upper body blanket M120100 120*100
8 Upper body blanket with Film M115100 115*100
9 Lower-body warming blanket M128100 128*100
10 Pediatric Full Body blanket M150100 150*100
11 Adult blanket W205100 205*100
12 Adult Full Path blanket W210100 210*100
13 Spine blanket W205105 205*105
14 Lithotomy position blanket W170100 170*100
15 Pediatric warming blanket W160100 160*100
16 Infant warming blanket W130100 130*100
17 Obstetric Infant Warming Blanket W9875 98*75
