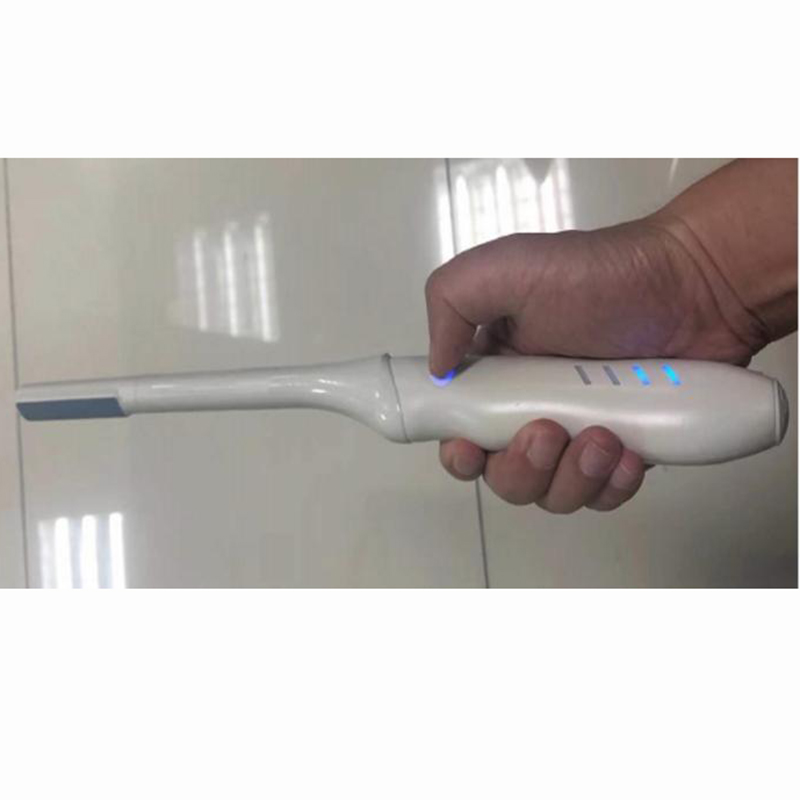

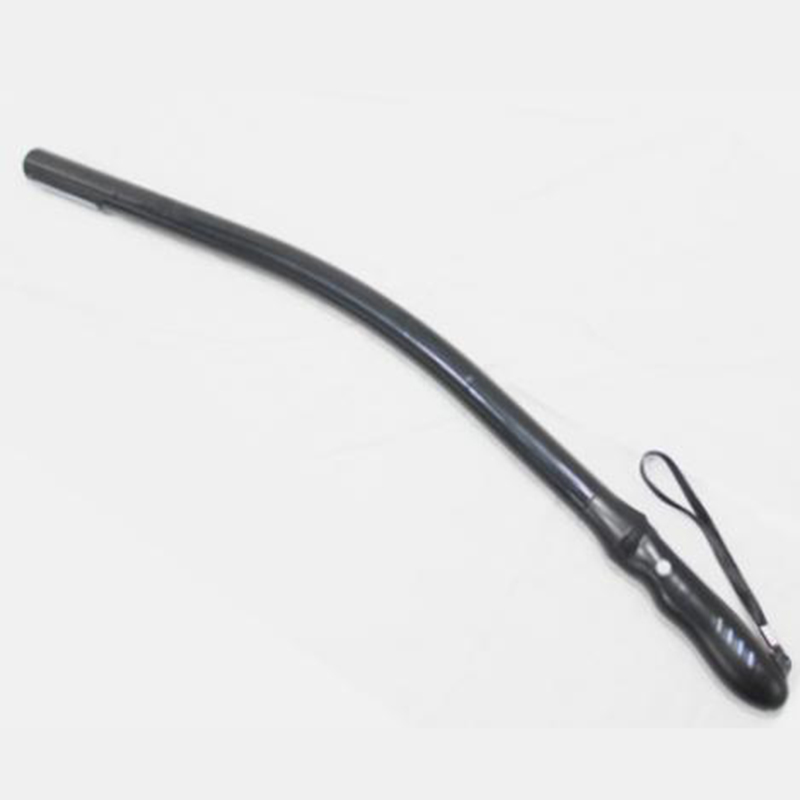

Transrectal Probe Type Wireless Ultrasound Scanner

PARAMETER	SPECIFICATION
Scanning mode	Electronic array
Display mode	B, B/M
Frequency	Convex 3.5MHz/5MHz, Linear 7.5MHz/10MHz
Scan Depth	Convex 90/130/160/200mm, Linear 20/40/60/100mm
Probe Radius/Length	Convex R60, Linear L64
Image Adjust	Gain, DYN, Focus, Depth, Harmonic, Denoise
Puncture assist function	the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development.
Cineplay	Auto and manual, frames can set as 100/200/500/1000
Measure	Length, Area, Angle, Obstetrics
Image save format	jpg, avi and DICOM format
Image frame rate	18 frames/second
Battery working time	6-8 hours
Battery charge	by USB
Length	800mm
Weight	600g
Wifi type	802.11g/ 20MHz/ 5G/ 450Mbps
