| PARAMETER | Fixed SID’s 4 Way Floating Radiography Table | |
| Electromagnetic brakes for all movements | ||
| Fixed SID distance adjusted to 900 mm | ||
| Table Top Longitudinal Travel | 190 mm | |
| Table Top Transverse Travel | 85 mm | |
| Table Top Size | 1300 mm x 630 mm | |
| Whole Machine Dimension | 1500 mm x 865 mm x 1900 mm | |
| PARAMETER | a-Si TFT Detector | |
| Pixel Size | 139μm | |
| Pixel Matrix | 3072 x 3072 | |
| AD Conversion | 16 bits | |
| Spatial Resolution | 3.6 lp/mm | |
| Imaging Area | 430mm × 430mm (17” x 17”) | |
| Dimension | 460mm x 460mm x 15mm | |
| Weight | 3.5Kg | |
| PARAMETER | X-ray Generator | |
| High Frequency | 50 KHz, ±10% | |
| Single Phase | 220 VAC or 380 VAC, 32 KW | |
| X-ray tube H.U. continual monitoring for X-ray tube protection | ||
| Kv Radiographic range | from 40 to 150 Kv | |
| mA Radiographic range | from 10 to 400 mA | |
| mAs | 0.1-400mAs | |
| Anatomical program APR (Kv, mAs, focal spot, etc), optional AEC | ||
| Light and sound indication for X-ray exposure | ||
| Dual Switch (Foot and Hand-Switch) for preparation and exposure control. | ||
| PARAMETER | X-Ray Tube | |
| Yuanzhi or Optional Canon (Toshiba) E7239X | ||
| Maximum Tension | 125 Kv | |
| Focus Sizes | Small focus 1.0 mm, Large focus 2.0 mm | |
| Anode Heat Content | 150kHU | |
| Anode Rotation 60Hz minimum 3200 rpm, 50Hz 2800rpm | ||
| PARAMETER | Manual Collimator | |
| Manual collimator. | ||
| Inherent Filtration 1.5mmAI | ||
| Field LED lamp with timer. | ||
| Light indicator for alignment with Bucky. | ||
| Retractable measuring tape | ||
| PARAMETER | Workstation and S/W
(B-Console vet) |
|
| Preview &Post processing Time : 3 sec | ||
| KV, mA, mAS, Thumb nail View, patient Info and so on | ||

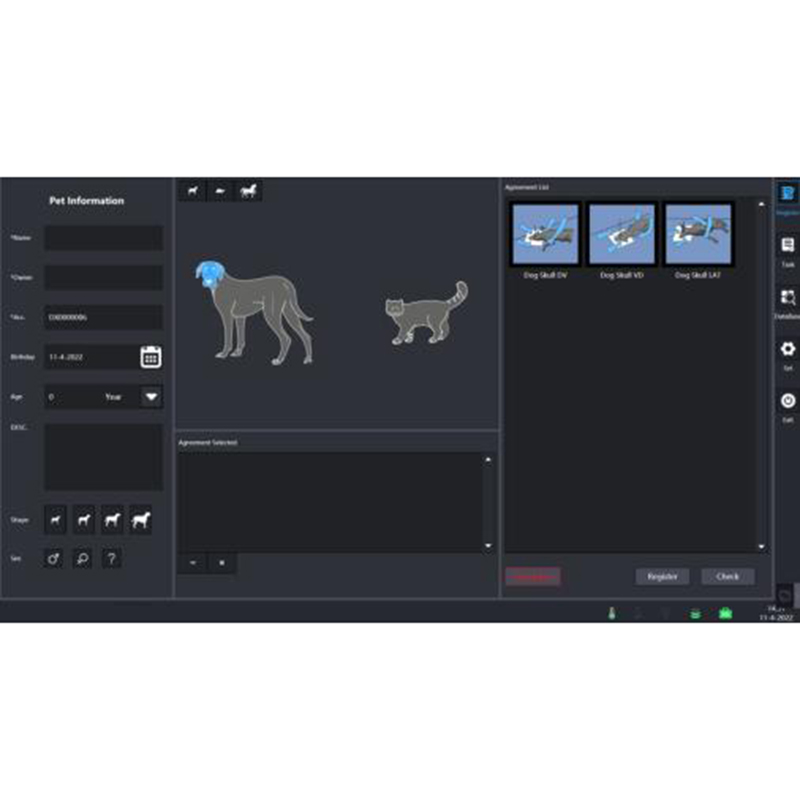

| Main Screen Console: Veterinary patient information | ||
| Automatic Pre & Post image enhancement. | ||
| Expands image processing for optimized viewing | ||
| Enhances variable density and form shading | ||
| Variety Measurements | ||
| Application measurements & teaching tools (such as VHS, HD, TPLO, TTA etc) | ||
| KV and mAs sync-controlled through thickness | ||
| DICOM sending and Report writing and Printing | ||
| Easy Calibration & User setting | ||
