V-DRF30 is professional veterinary Dynamic Digital Radiography system, is designed to offer quality and safe X-ray images and live X-ray video fluoroscopy for animal diagnosis.
V-DRF30 developed specifically with veterinarians and their work flows in mind, is a combination of mobile DR system and C-arm system(2-in-1), enabling the veterinarians to enjoy powerful output in X-ray room and conveniences diagnosis in operating room.
DRF can switching between digital X-ray and live X-ray Video fruoroscopy mode without any adjustment to your patient, moving between X-ray room and operating room freely.
Plenty of new Applications with live X-ray video fluoroscopy beyond digital X-ray.
-Evaluating urinary issues
-Studies of soft tissue or ligament damage
-Finding small fractures
-Diagnosing tracheal collapse
-Investigating possible jaw or skull fractures
-Diagnosing a hernia
-Orthopedical issues
-Swallowing/Esophageal studies
– Dual monitors: 19”touch monitor + 24” main monitor

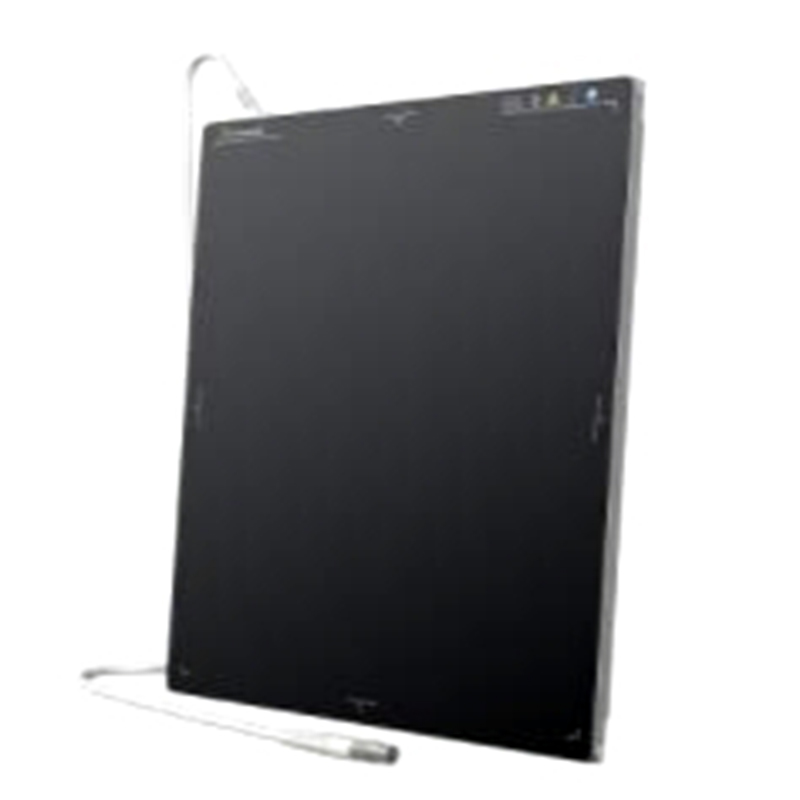

| PARAMETER | a-Si TFT Dynamic Detector |
| Pixel Size | 139μm |
| Pixel Matrix | 3072 x 3072 |
| AD Conversion | 16 bits |
| Spatial Resolution | 3.6 lp/mm |
| Imaging Area | 430mm × 430mm (17” x 17”) |
| Dimension | 460mm x 460mm x 15mm |
| Weight | 4Kg |

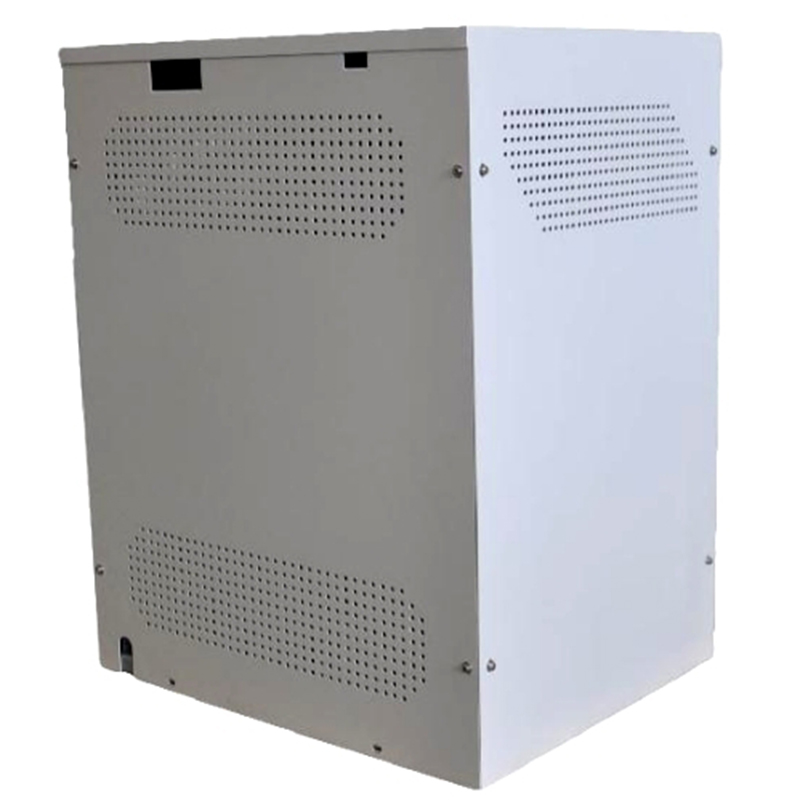

| PARAMETER | X-ray Generator Features |
| High Frequency | 250 KHz |
| Single Phase | 220/240VAC 32 KW |
| Output Power | 400 mA and 150Kv |
| X-ray tube H.U. continual monitoring for X-ray tube protection | |
| Kvp Radiographic range | from 40 to 150 Kvp |
| mA Radiographic range | from 10 to 400 mA |
| Anatomical program APR (Kvp, mAs, AEC, focal spot, etc) | |
| Dual Switch (Foot and Hand-Switch) for preparation and exposure | |

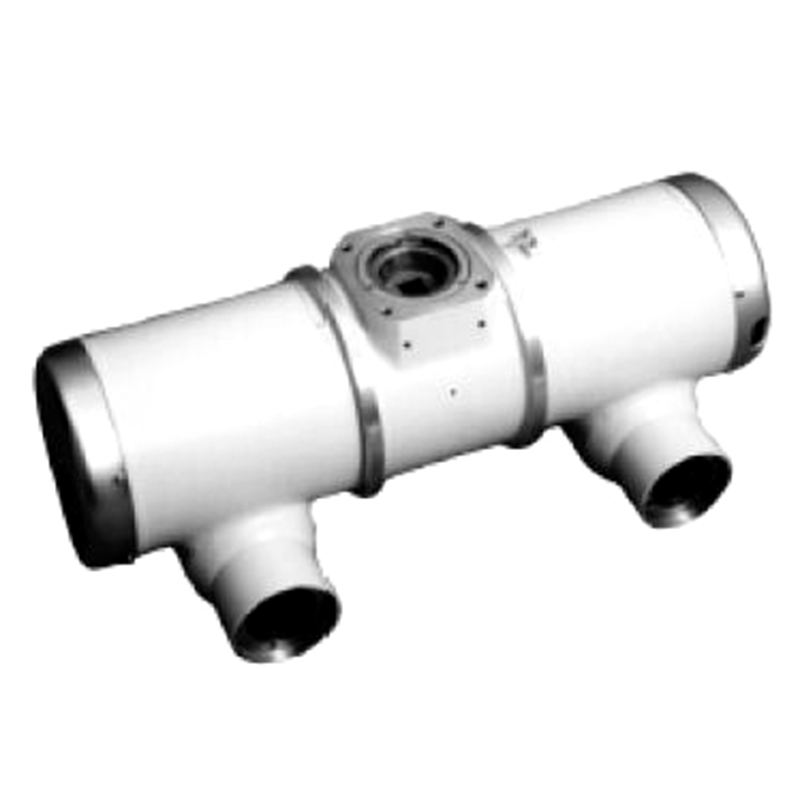

| PARAMETER | X-ray Tube |
| Canon(Toshiba) | E7239X |
| Maximum Tension | 125 kV |
| Focus sizes | Small focus 1.0 mm, Large focus 2.0 mm |
| Anode target angle : | 14 º |
| Anode Rotation | 2700 |

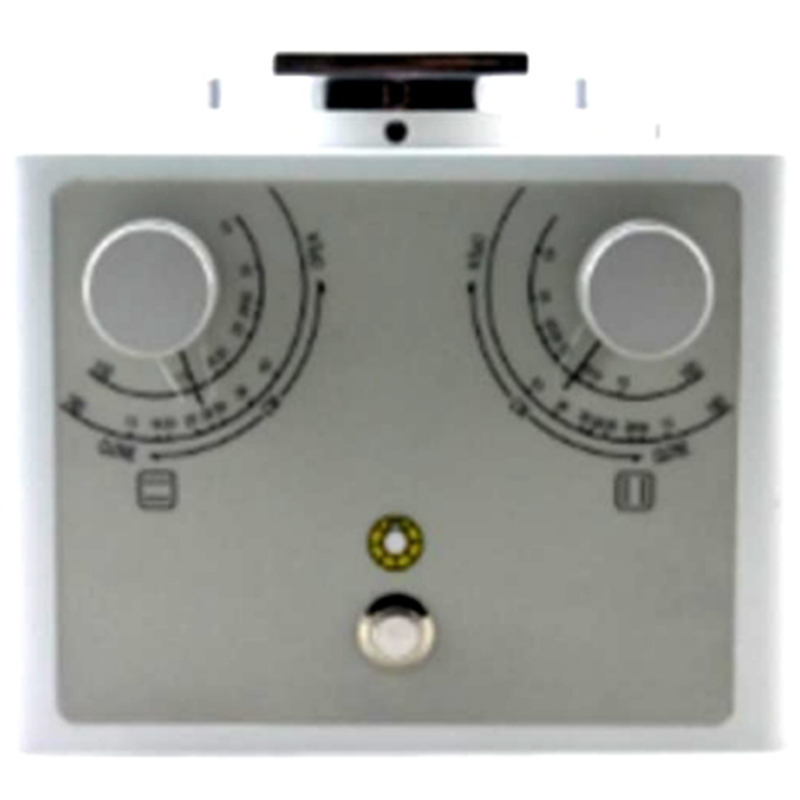

| PARAMETER | Manual Collimator |
| Manual collimator with 6 pair of leafs | |
| Accessory rails (cones, | |
| Field LED lamp of 160 LUX | |
| Light indicator for alignment with Bucky | |
| Retractable measuring tape | |

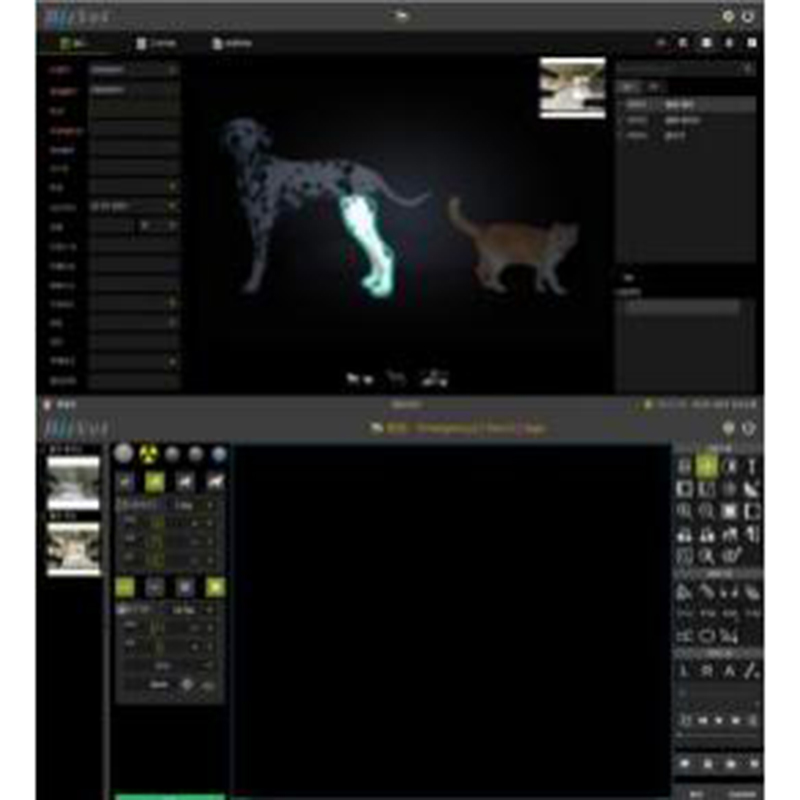

| Workstation and S/W (B-Console vet) | |
| Preview & Post processing Time : 3 sec | |
| KV, mA, mAS, Thumb nail View, patient Info and so on | |
| Main Screen Console: Veterinary patient information | |
| Automatic Pre & Post image enhancement. | |
| Expands image processing for optimized viewing | |
| Enhances variable density and form shading | |
| Variety Measurements | |
| Application measurements & teaching tools (such as VHS, HD, TPLO, TTA etc) | |
| One key to capture images into Clipboard | |
| DICOM sending and Report writing and Printing | |
| Easy Calibration & User setting |
