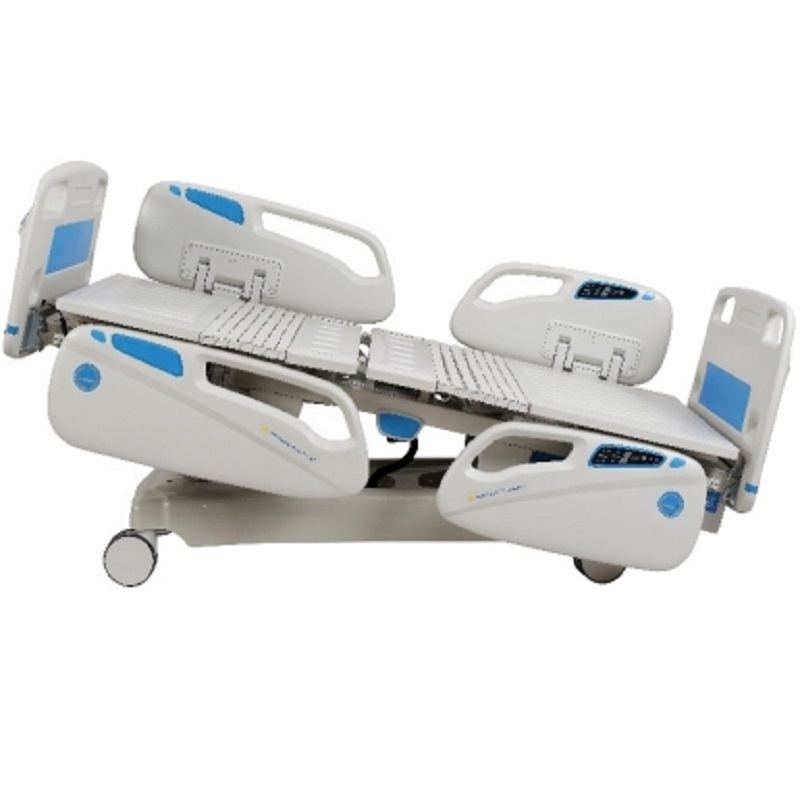

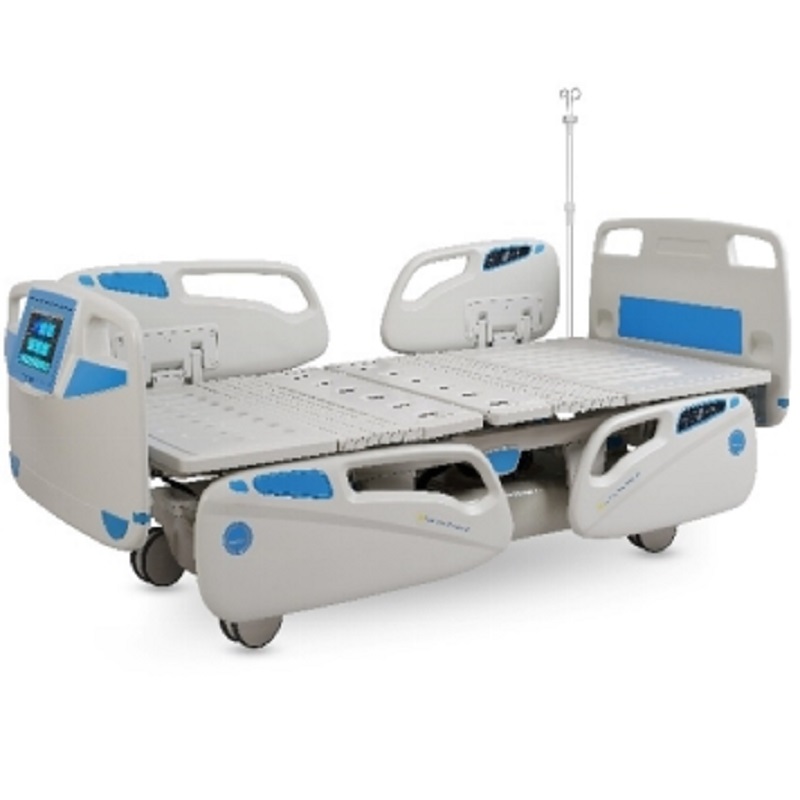

5 Function Electric Hospital Bed (Luxury)

With easily operated touching switch, solve the problem of limited service life of mechanical keypad and keypad invalid due to constantly operating
Insert touching switch in the 2 pcs side rail at the head side, for patient adjust bed posture easily. A 10.2″touching screen at the foot board, display all the bed posture figures with Patient Lock-Out system, for nursing person’s position
Back-rest,Leg-rest, Hi-low, Trendelenburg & Trendelenburg all achieved by electrically controlled, with indicator light to show the works status
Black & Leg linkage movement: back-rest and leg-rest can up at the same time, supply convenient operation
Bed position data can be stored and call out
Function of weight scale, weightdata can be stored and managed
Off-bed alarming
With the “reset” button to make the bed be flat and lowest from any position
Back battery, for emergency power failure
Detachable head foot board in PP plastic, can be fixed when assembled
4 pcs drop-down PP protective railing, controlled by gas spring
Bed board with soft connection, make the bending of the bed board smoother to let the patient feel more comfortable when lying in the bed
Central brake castors,brake the un-brake controlled by electric-operation
V pole mount bracket, at 4 corners of the bed frame
Standard Accessory：Pole

PRAMETER	SPECIFICATION
Material	Steel frame work,Top class ABS&PP plastic
Dimension	2280mm(L)1050(W)500mm(W)-750mm
Bed Board	1940mm(L)*900mm(W)
Hi-Low	750mm-500mm
Back-Rest	0-65°
Leg-Rest	0-40°
Trendelenburg	0~12º
Anti-trendenburg	0~12º
Net Weight	158kg
Load Capacity	<250kg
Castor	Φ150mm Universal (Central Brake).Electric brake&un-brake
