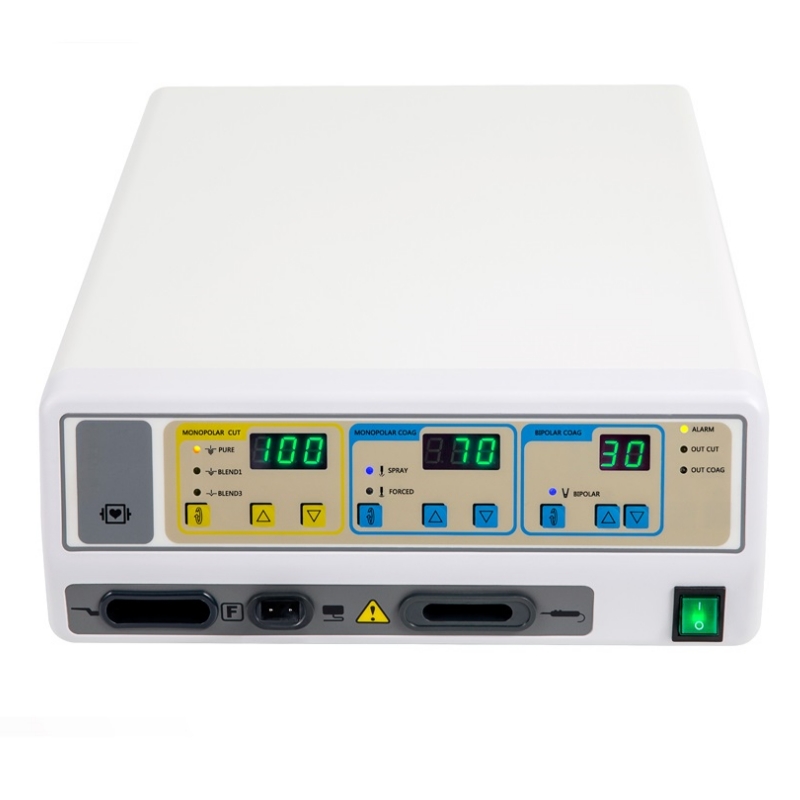

ESU-2000I Electrosurgical Unit – ARI Medical Equipment of High Quality – ARI Medical Technology

Products

Electrosurgical Unit

Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
Six working modes: pure cut, blend1, blend2, spray coag, forced coag, bipolar coag.
Duty Cycle: Intermittent loading and continuous operation (10s/30s)
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology (under the water TUR), oncology, neurosurgery, etc.
Microprocessor controlled, digital display.
With audible and visual indicators and errors codes during the process of outputting.
Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag, and bipolar coag, each output can be individually configured.
Memory function.The unit always remember the last setting when it turned off.
Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
The ESU unit can be connected with laparoscope and endoscope, etc.
Protection against over-voltage and over-current.
Defibrillation protected.
Mounted on a 4 wheels cart (optional).

SIX WORKING MODES
Function	Modes		Output Power (load)		V-PP	CF
Monoploar cut	Pure cut		1-350W	@800Ω Load	1.4KV	1.4
	Blend 1		1-200W	@800Ω Load	1.72KV	1.7
	Blend 2		1-100W	@800Ω Load	2.1KV	2.5
Monopolar coagulation	Spray		1-80W	@800Ω Load	2.8KV	5.8
	Forced		1-120W	@800Ω Load	640KV	2.1
Bipolar	Standard coag		1-70W	@200Ω Load	480V	1.8
INPUT POWER
Input voltage	100-240V～±10%
Mains line frequency range	50-60Hz
Power rating	1100VA
Power consumption	≤1100VA
Fuses (two)	5A / 10A
Working frequency	416KHz
Monopolar RF leakage current	< 150mA
Bipolar RF leakage current	< 50mA
OPERTING PARAMETERS
Ambient temperature range	5°C to 40°C
Relative humidity	≤80%
Atmospheric pressure	86kPa to 106kPa
MAIN UNIT DIMENSIONS & WEIGHT
Dimensions	L45.2cmW36cmH16cm
Weight	8.5KGS
STANDARD CONFIGURATION
Main Unit	1	set
Electrosurgical pencil	5	pieces
Electrosurgical pad	10	pieces
Electrosurgical pad cable	1	piece
Monopolar footswitch	1	set
Bipolar footswitch	1	set
Bipolar forceps with cable	1	set
Tip clean sponge	1	piece
Power cable	1	piece
Fuse	3	pieces
