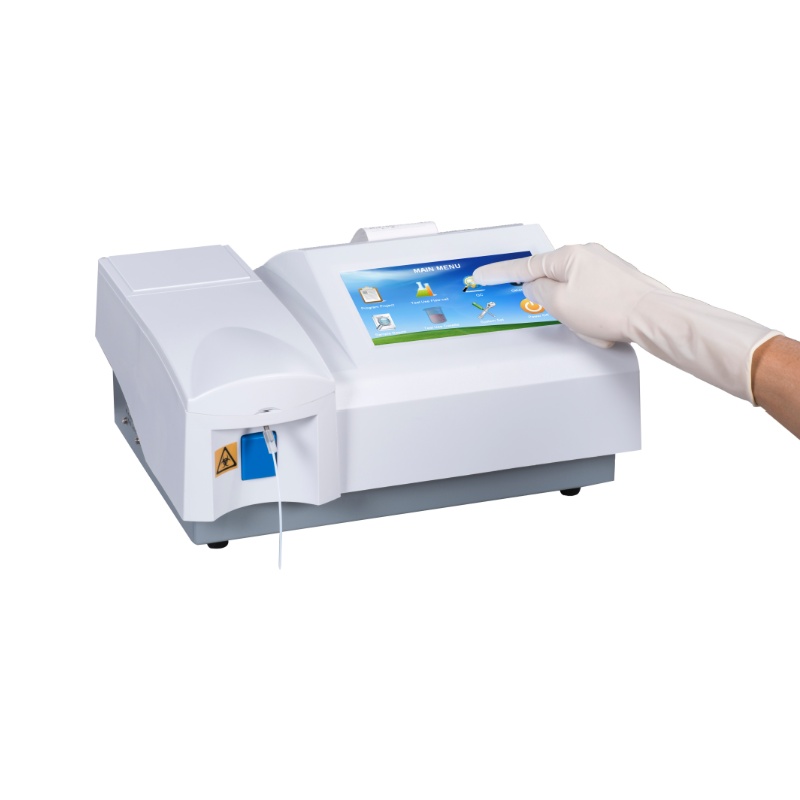

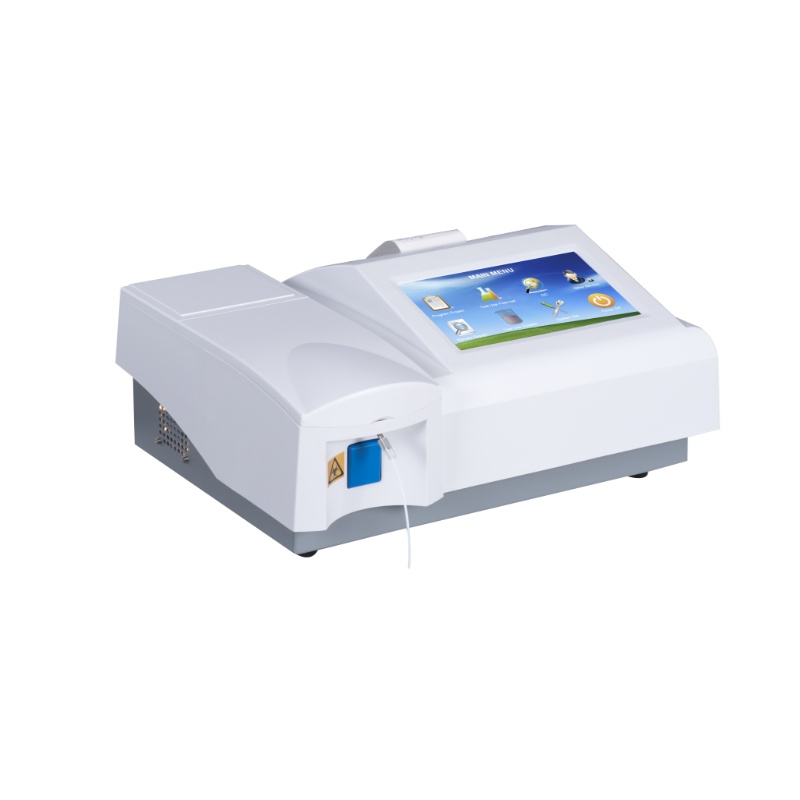

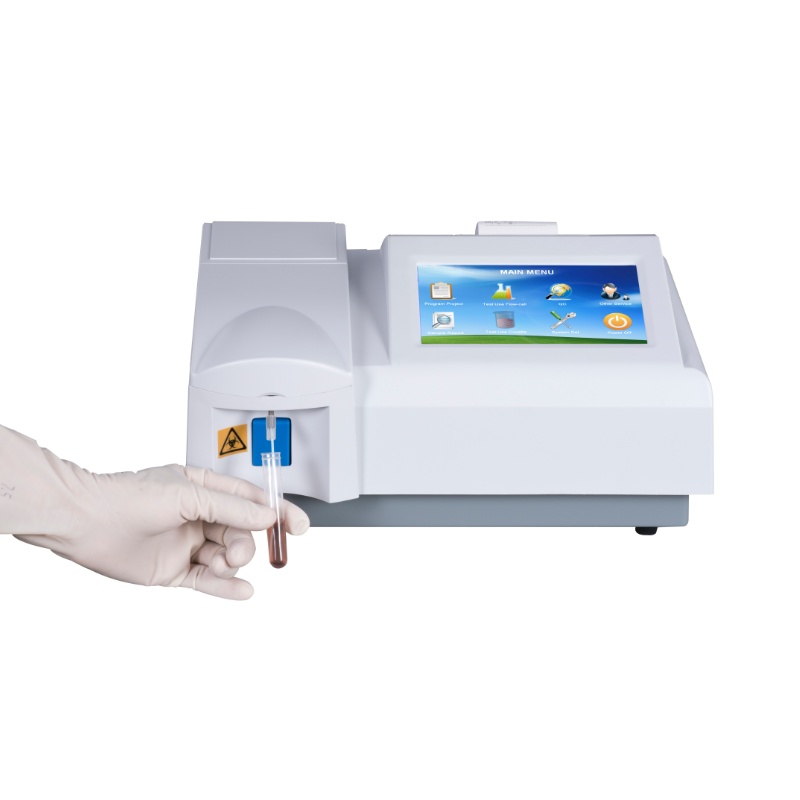

AR-3002B Chemistry Analyzer – ARI Medical Equipment of High Quality – ARI Medical Technology

Products

Chemistry Analyzer

-Test method:kinetic, end point, two point, turbidimetry,absorbance

-7 wavelengths filter:340-405-492-510-546-578-630nm

-7inch color LCD , touch screen

-112 test item pre-programmed

-Abs range:0-4.500Abs;Real time curve showing

-Memory for 10,000 sample results

-Light source hibernate function making lamp life longer

-RS232 interface, PC connecting

-Languages scuh as English, French, Spanish, Portuguese, Indonesian,Russian

PARAMETER	SPECIFICATION
Test mode	kinetic, end-point, fixed-time, turbidimetry ,absorbance
Wavelength	7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
Wavelength precision	±2 nm, width ≤ 10nm
Flow cell	32 uL quartz glass, 10 mm
carry over	< 1%
Repeatability CV	< 1%
Sample volume	0~3000uL (≥500uL recommend)
Data Storage	≥10000
Lamp	Philips 6V 10W Halogen Lamp with long life
Languages	English, French, Spanish, Portuguese, Indonesian, Russian
Absorbance range	0~4.500 Abs
Absorbance precision	outside 0.0001 Abs , inside 0.00001 Abs
Carry over	< 1%
Repeatability CV	< 1%
Quality control curve	X-bar、SD、CV%、L-J quality control curve for every test item
CPU	ARM series high speed micro CPU
Printer	Internal thermal sensitive printer
Interface	RS-232
Work Environment	Temperature 0°C ~ 40°C, Humidity: ≤80%
Power supply	100~240VAC，50-60Hz，100VA
Dimension	340(L)270(W)160(H)
Weight	5 kg

Liver function	ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function	BUN CRE UA URE CO2-CP γ-GT
Lipids	T-CHO TG HDL-C LDL-C
Cardiac function	CK CK-MB LDH
Immune proteins	IGA IGG IGM C3
Others	GLU AMS Anti-CCP ASO CRP D-Dimer HbA1c RF SAA B2M Cys-C LP(a) mA1b MB NGAL RBP
