1. It can be widely used in the examination and diagnosis of human limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc;
2. Simple structure, small size, light weight, no environmental restrictions, no need to build a lead shielded darkroom;
3. Mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;
4. Three exposure control methods: remote control, hand switch, touch screen;
5. Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current;
6. It is a DR digital X-ray photography system.

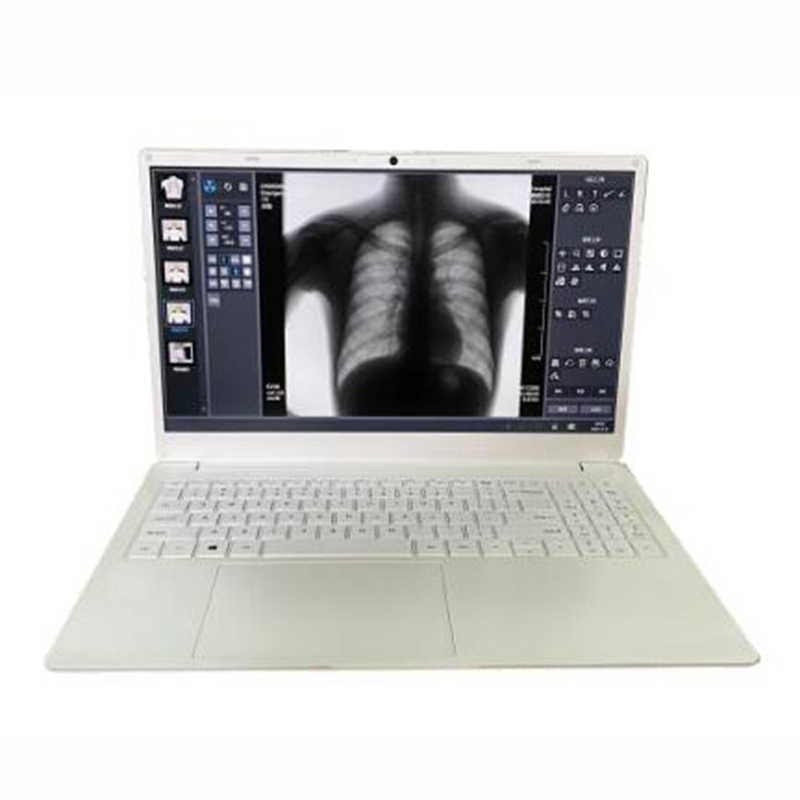

Mobile rack, flat panel detector, computer

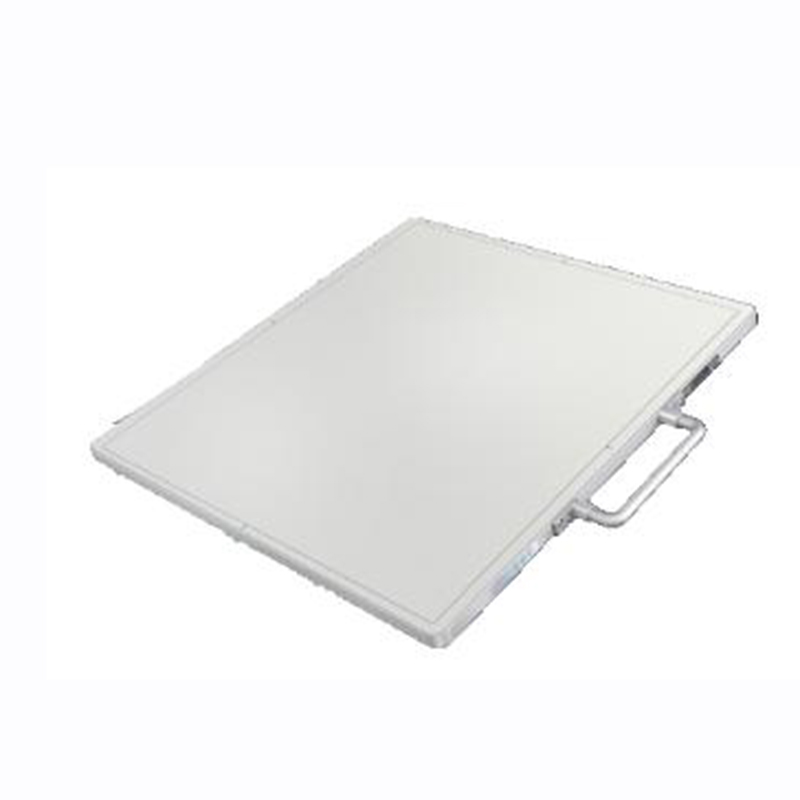

1. Detector category: amorphous silicon
2. Scintillator CsI
3. Image size 43×43 cm(17*17in)
4. Pixel matrix: 3072×3072
5. Pixel pitch 139 μm
6. A/D conversion 16 Bit
7. Spatial resolution 3.6
8. Image acquisition time: 1S

1. Screen size 14.1/15.6
2. Processor Core Quad
3. Core
4. Memory 8G
5. Hard disk 512G
6. Graphics card

1. Net weight: 20KG
2. Maximum height: 1710mm
3. Adjust: 645~1710mm
