Electrosurgical Unit

Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
Nine working modes: pure cut, blend1, blend2, blend3, spray coag, forced coag, soft coag, bipolar coag, bipolar cut.
Duty Cycle: Intermittent loading and continuous operation (10s/30s)
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology (under water TUR), oncology, neurosurgery, etc.
Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
Memory Function: Preset for 10 frequently used working modes and power settings.
Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
Two monopolar output receptacles. Can connect two monopolar instruments for simultaneous coagulation.
The ESU unit can be connected with laparoscope and endoscope, etc.
Connect with a Bipolar Clamp, Bipolar cut mode can close and cut soft tissues such as fascia and ome
Protection against over-voltage and over-current.
Defibrillation protected.
Convection refrigeration without ventilator.
Mounted on a 4 wheels cart(optional).

NINE WORKING MODES
Function	Modes		Output Power (load)		V-PP	CF
Monoploar cut	Pure cut		1-400W	@800Ω Load	2.6KV	1.5
	Blend 1		1-300W	@800Ω Load	4.0KV	1.8
	Blend 2		1-200W	@800Ω Load	4.2KV	2.1
	Blend 3		1-150W	@800Ω Load	4.0KV	2.7
Monopolar coagulation	Spray		1-80W	@800Ω Load	5.3KV	7.4
	Forced		1-120W	@800Ω Load	5.0KV	3.8
	Soft		1-120W	@800Ω Load	720V	1.6
Bipolar	Bipolar cogulation		1-70W	@200Ω Load	550V	1.6
	Micro bipolar		1-120W	@200Ω Load	350V	1.6
INPUT POWER
Input voltage	100-240V～±10%
Mains line frequency range	50-60Hz
Power rating	1100VA
Power consumption	≤1100VA
Fuses (two)	5A / 10A
Working frequency	MONO:512KHz ; BIP:1024KHZ
Monopolar RF leakage current	< 150mA
Bipolar RF leakage current	< 50mA
OPERTING PARAMETERS
Ambient temperature range	5°C to 40°C
Relative humidity	≤80%
Atmospheric pressure	86kPa to 106kPa
MAIN UNIT DIMENSIONS & WEIGHT
Dimensions	L49cmW42cmH18cm
Weight	9KGS

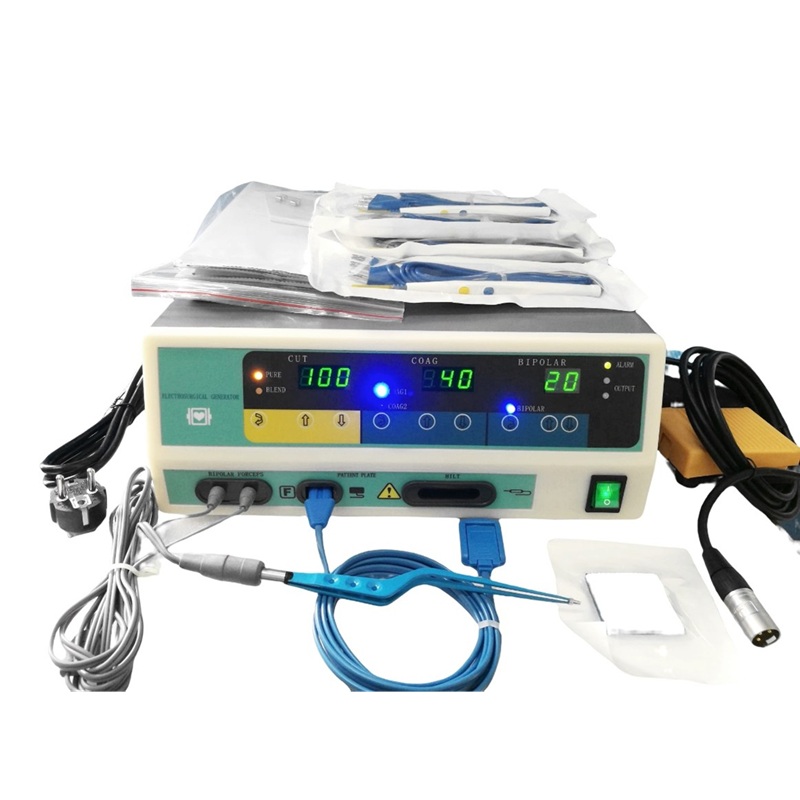

STANDARD CONFIGURATION
Main Unit	1	set
Electrosurgical pencil	5	pieces
Electrosurgical pad	10	pieces
Electrosurgical pad cable	1	piece
Monopolar footswitch	1	set
Bipolar footswitch	1	set
Bipolar forceps with cable	1	set
Tip clean sponge	1	piece
Power cable	1	piece
Fuse	3	pieces
