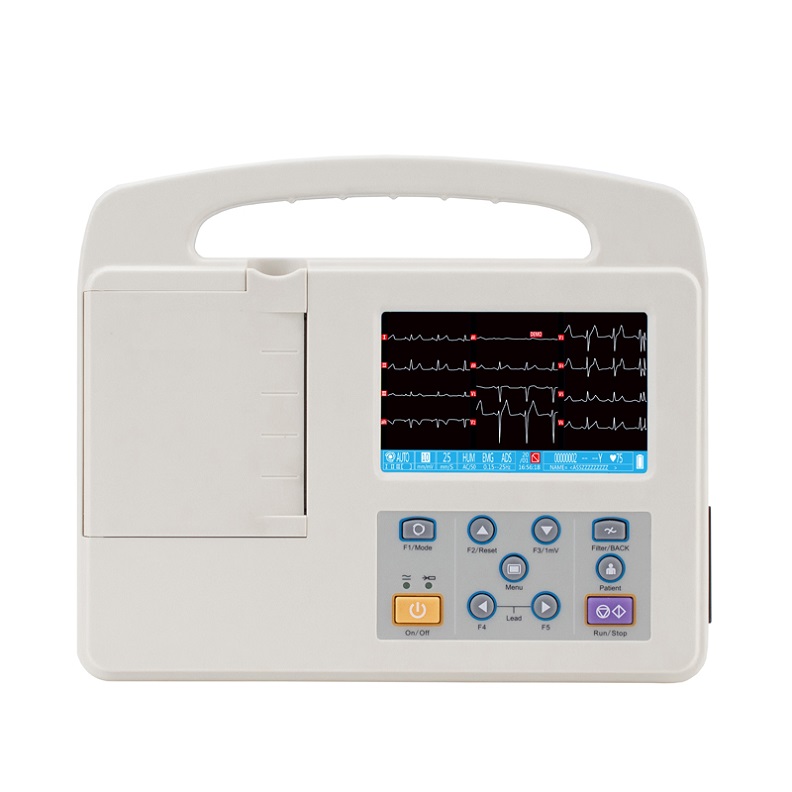

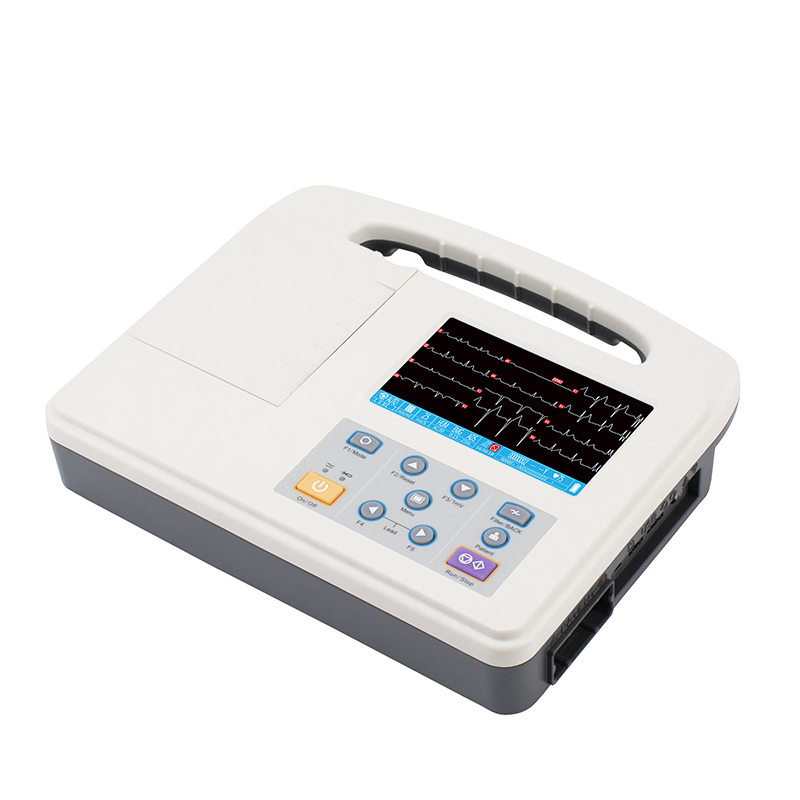

ECG Machine(3 Channel)

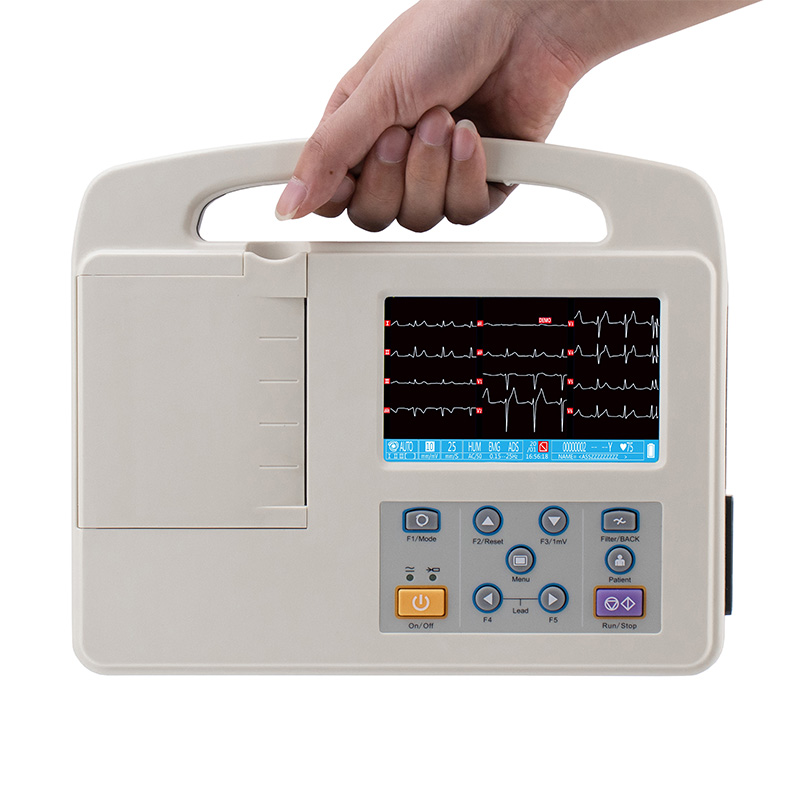

– Compact and small size design, portable and light weight, easy to operate.

– 12 leads synchronously acquisition and record, sampling rate 32000Hz.

– High accuracy digital filter, automatic baseline adjustment and pulse pace identification
function.

– Recording format: 1ch+, 3ch, 3ch+ & 1 minute rhythm lead record and analyze.

– Excellent automatic interpretation to analyze over 200 kinds of abnormal ECG.

– 80mm in width, 3 channel recording, high resolution thermal printing.

– Working modes: Manual, Auto, R-R (rhythm), Store( physical examination).

– 800×480 pixels 5 inch color LCD to display detailed ECG information.

– 250 patient cases storage and replay.

– Adapt to 110-230V, 50/60Hz power supply, automatic stabilivolt design.

– Rechargeable Lithium battery supports continuously working for 9 hours, charging time about 2.5 hours.

– USB / UART ports support USB storage, laser printer printing and PC ECG software(optional).

PARAMETER	SPECIFICATION
Lead	Standard 12 leads
Lead acquisition	12 leads synchronously acquisition
Work mode	Manual / Auto / R-R / Store
Filter	AC Filter: 50Hz / 60Hz EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive)
CMMR	≥120dB ( with AC filter )
Input circuit	Floating; Protection circuit against defibrillator
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05～160Hz(-3db)
Noise level	＜15μVp-p
Inter-channel Interference	≤0.5mm
Sensitivity	Auto, 5, 10, 20, 40mm/mV
Recording mode	1chx12+R, 3chx4, 3chx4+R
Paper speed	6.25, 12.5, 25, 50mm/s (±3%)
Recording paper	80mmx20m high resolution thermal roll paper
Display	800×480 pixels 5 inch color LCD
Internal memory	250 patient cases storage
Power Supply	AC 75-265V(±10%), 50/60Hz, 60VA DC Rechargeable Li-ion battery,14.4V, 2200mAh
Communication Port	USB, UART
Dimension/Weight	260mmx220mmx58mm/ 1.7Kgs.
