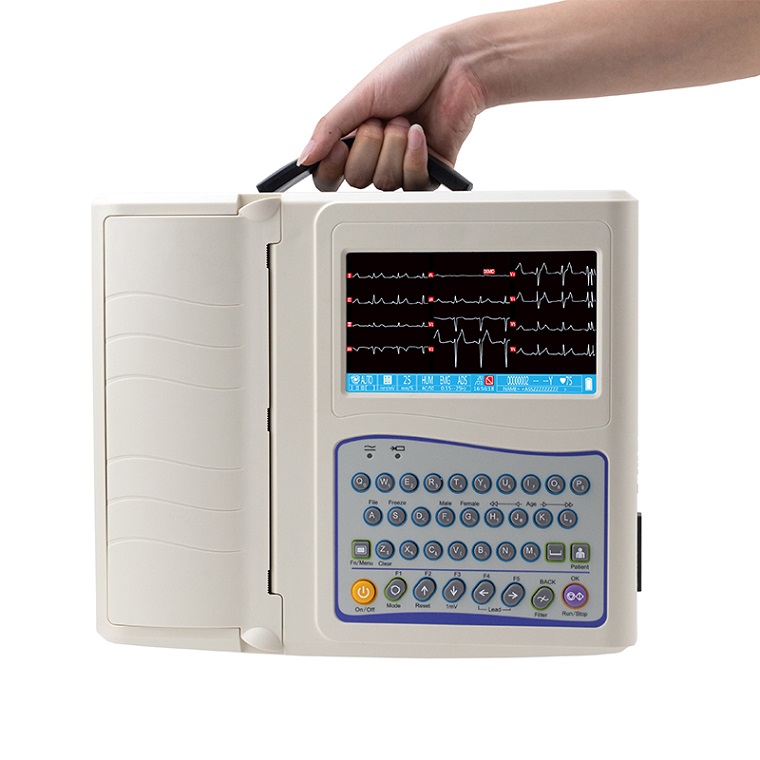

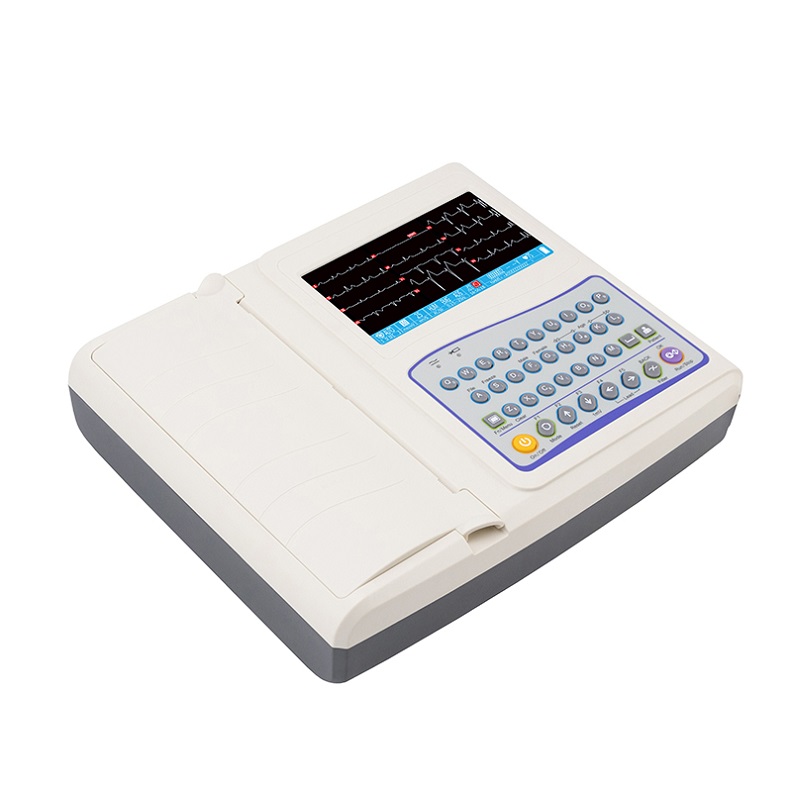

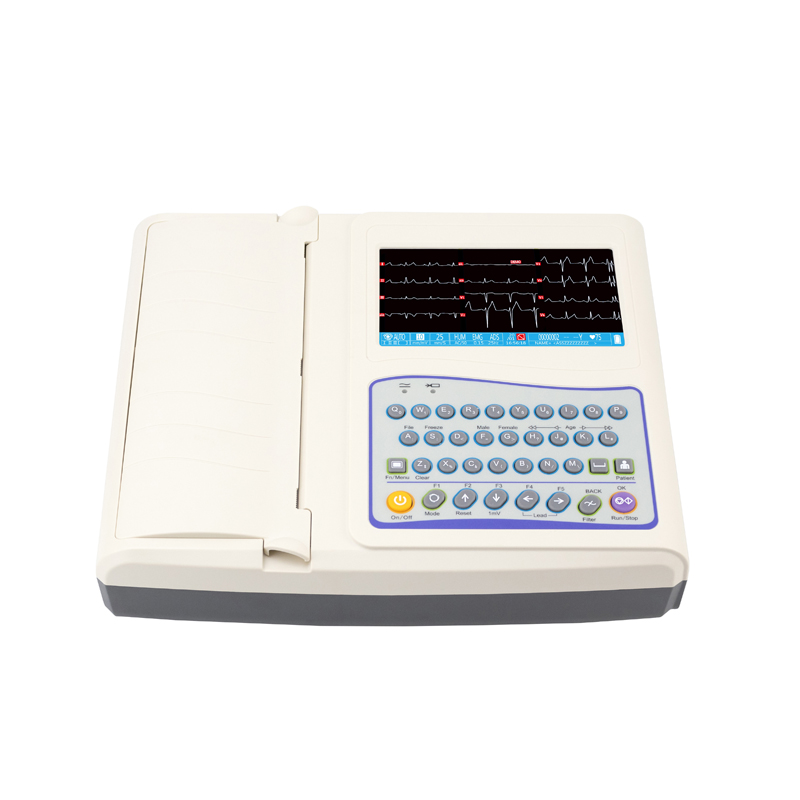

ECG Machine Color Screen(12 Channel)

Compact in size, easy and direct operation, portable
Accurate pacing pulse identification and automatic analysis function.
Four working modes: Manual / Auto / Physical Examination / Storage
12 channel format recording
Freeze function: can replay 12 seconds cardiograph front and back
Fast ECG test under the [Physical Examination], saving power and paper
Store and replay cardiograph without printing parameters and diagnosis under the Storage
800×480 7”graphic color screen with Alphabet keyboard input
Adapt to 110-230V, 50/60Hz AC power supply.
Built in rechargeable Li-ion battery.
12 lead waveforms view with 250 patient information storage (Extendable)
Built-in USB, UARTinterface, EXGNET software optional
USB interface for net transmission, USB flash disk and USB printeroptional
Auxiliar diagnosticSTEMI
Selectable explanation on each lead mode

PARAMETER	SPECIFICATION
Lead	Standard 12 leads
Lead acquisition	32000Hz (synchronously 12 leads acquisition)
Work mode	Manual, Auto, R-R, Store Modes
Filter	AC Filter: 50Hz / 60Hz EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive)
CMMR	≥100dB (with AC FILTER)
Input circuit	Floating; Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05～160Hz(-3db)
Noise level	＜15μVp-p
Inter-channel Interference	≤0.5mm
Sensitivity	5，10，20, 40, Auto (mm/mV)
Recording mode	3ch+++、6ch、6ch+、12ch
Paper speed	6.25、12.5、25、50mm/s（±3％）
Paper	210 mm*30m Roll paper
Communication	USB/UART port
Power Supply	AC 110-230V (±10%), 50/60Hz (±1Hz), 60VA DC Built-in rechargeable battery,14.4V(2000mmAh)
Dimension/Weight	347mm×293mm×83mm, 4.8Kg
