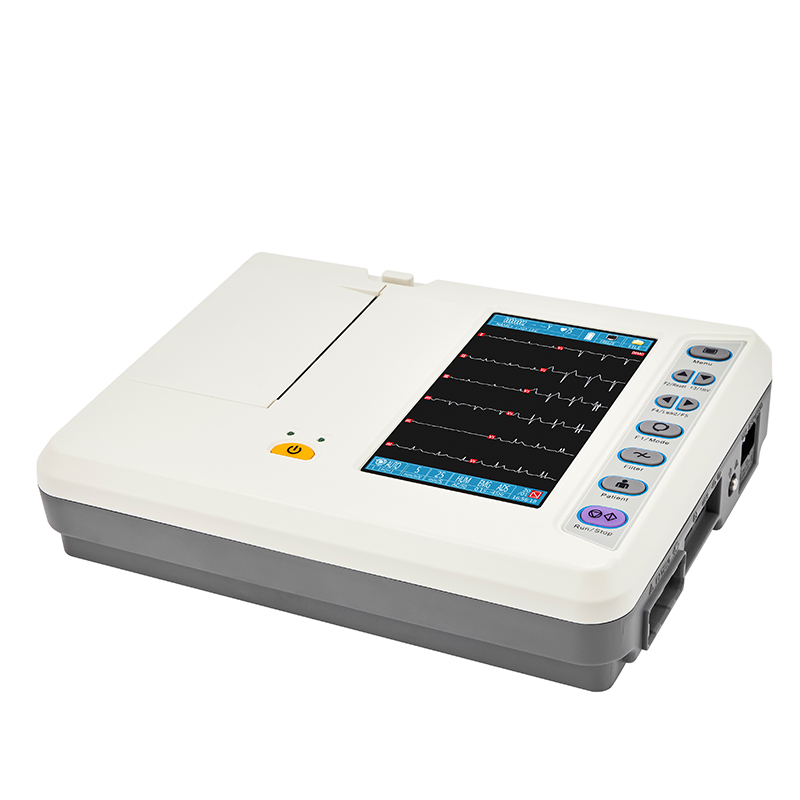

ECG Machine(6 Channel)

– Portable and delicate design, big touch screen to display, easy to operate.

– Accurate pulse pace identification function.

– High accuracy digital filter, automatic baseline adjustment.

– Working modes: Manual, Automatic, R-R, Store.

– 112mm, 6 channel format recording, excellent automatic interpretation.

– 800×480 graphic 7 inch color touch LCD to simultaneously display ECG information.

– 250 patient cases storage ( SD card storage is optional ).

– Detailed patient information record.

– Adapt to 110-230V, 50/60Hz power supply. Built-in rechargeable Li-ion battery supports continuously working for about 9 hours.

– USB / UART communication ports support USB storage, laser printer printing and PC ECG software (Optional).

PARAMETER	SPECIFICATION
Lead	Standard 12 leads
Lead acquisition	12 leads synchronously acquisition
Work mode	Manual / Auto / R-R / Store
Filter	AC Filter: 50Hz / 60Hz EMG Filter: 25Hz / 45Hz Anti-Drift Filter: 0.15Hz (Adaptive)
CMMR	≥120dB ( with AC filter )
Input circuit	Floating; Protection circuit against defibrillator effect
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	＜10μA
Calibrating voltage	1mV±2％
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05～160Hz(-3db)
Noise level	＜15μVp-p
Inter-channel Interference	≤0.5mm
Sensitivity	Auto, 2.5, 5, 10, 20, 40mm/mV (±3%)
Recording mode	3ch+, 3ch+++, 6ch
Paper speed	6.25, 12.5, 25, 50mm/s (±3%)
Recording paper	112mmx27m roll paper
Working environment	Temperature 5-40℃; Humidity 25-95%
Power Supply	. AC 110-230V (±10%), 50/60Hz (±1Hz) . DC Built-in rechargeable Li-ion battery, 14.4V, 2200mAh
Communication Port	USB, UART
Dimension/Weight	300mmx230mmx75mm/2.8Kgs.
