Type: Semi-automatic external defibrillator

Mode: Adult, Child

Waveform: biphasic truncated exponential

Energy: 200 joules max.

Power sequence (programmable):

Children: 50, 50, 75 joules

Adults: 150, 150, 200 joules

Charging time (at 25℃):

Less than 6 seconds at 150 J

Less than 8 seconds at 200 J

ECG analysis 8.5 seconds

Voice cue: Extended voice cue

Visual indicators: LED indicators

Control (two buttons): on/off, Shock ECG storage: 1500 events

Waveform gain: 5 mm/mv, 10 mm/mv, 20 mm/mv

Waveform speed: 12.5 mm/s, 25 mm/s, 50 mm/s

2 languages ​​to choose from (per end user)

5 sound volume levels (per end user)

Adult/Pediatric Mode Selector Button

Adult and pediatric modes compatible with the same electrodes.

Self-diagnostic checks of battery and circuit function on a daily, weekly, and monthly basis

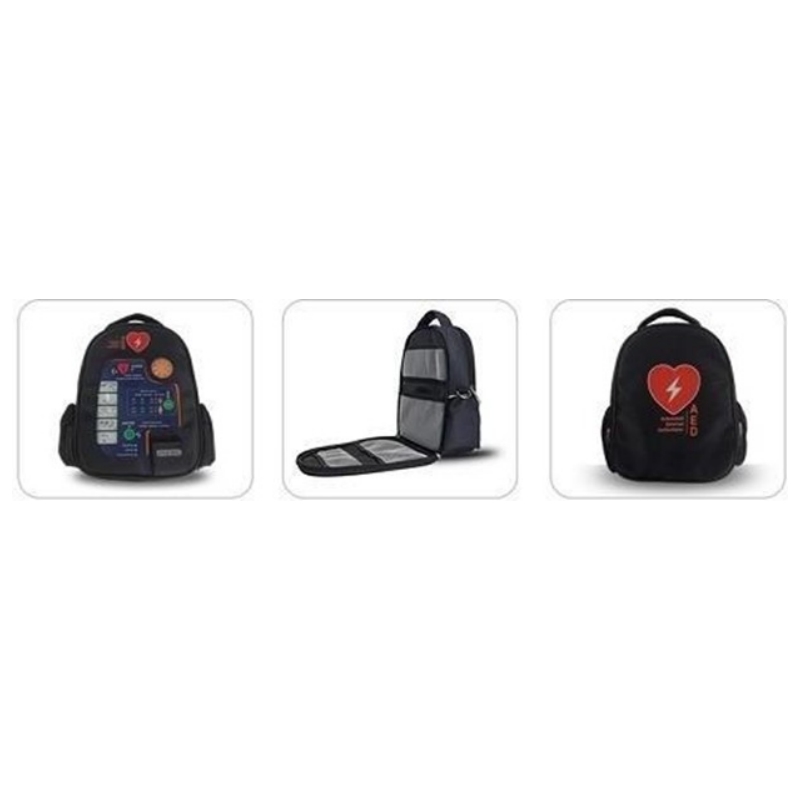

Using the AED while it is in the bag (it is not necessary to open the bag while using the machine)

Additional pocket in the carrying bag for storing first aid supplies

IPX55 Water and Dust Resistant

Defibrillator with three-step defibrillation process

Selectable energy for patients of different ages: 50, 50, 75 joules; 150, 150, 200 joules

Automatic ECG analysis to determine the need for shock with voice-guided instructions and information for each stage of the process and CPR

Extensive voice prompts, alarms, and visual prompts for the operator in Spanish.

Electrodes compatible with any type of patient.

AHA CPR Guide in Spanish

Language that can be manually changed

Two-phase power output

Lockout protection to prevent accidental defibrillation

The device has an internal memory (60 hours)

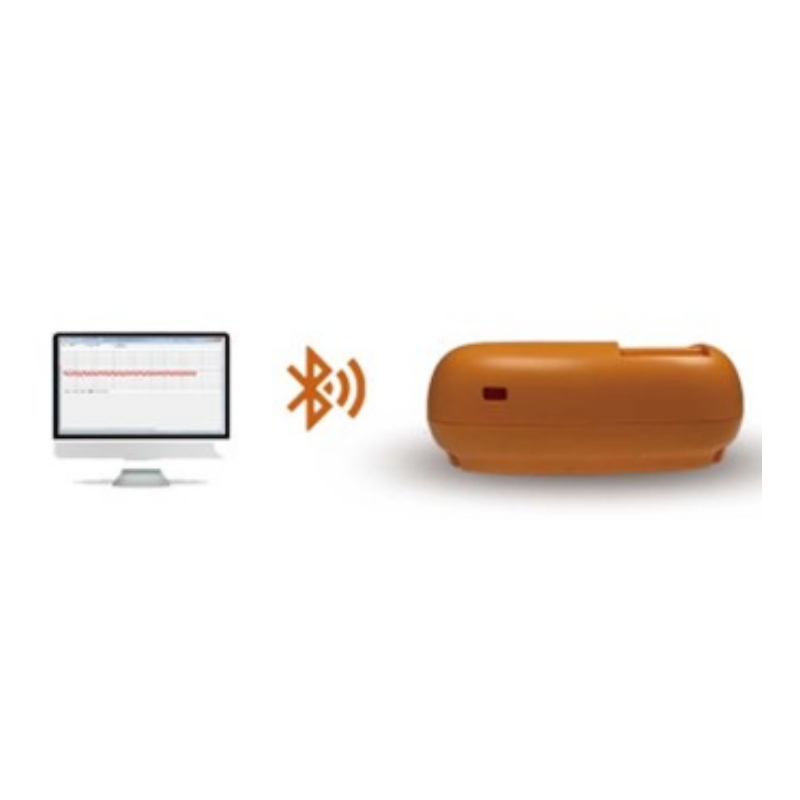

Data, ECG signals, and events can be transferred to the computer via Bluetooth 2.0

ECG data storage on the unit

The pads are compatible with any gender and age

Long-life disposable LiMnO2 battery (battery life of at least 5 years)

Battery autonomy capacity up to 200 discharges

It is used to assist the automated external defibrillator monitoring system

The interface displays status information recorded during AED operation, including event type, time, description, and waveforms. Compatible with Windows operating systems.

Event types include: power-on event, self-test event, analysis event, charging event, discharging event, CPR initiation event, and event of completion of CPR.

The event time shows when the event occurs.

The description displays parameter information. “OHM” represents the patient’s detected impedance. The power parameter represents the completed load voltage. “Shock Required” indicates that a shock is recommended after the analysis. “Shock Not Required” indicates that a shock is not recommended after the analysis. The waveform represents the ECG waveforms.

Click “print” on the ECG waveform display interface, then enter the print settings interface.

Power: 12V, 3000mAh

Type: Non-rechargeable Li-MnO2 cell

Ambient operating temperature: 0 ℃ to 40 ℃

Operating humidity: Relative humidity between 30% and 95% (non-condensing)

Storage temperature (without battery): -20℃ to 55℃

Storage humidity (without battery): Up to 93% (non-condensing)

Weight (with battery and patches): 1.9 kg (4.2 lbs)

Standard

AED pad                   1 piece

Disposable glove, 1 piece

Battery                      1 piece

DEA case      1 piece

Scissors 1 piece

1-piece razor

CPR mask 1 piece

Cleaning cloth      1 piece

CD software for ECG data transfer

Optional

Metal cabinet with epoxy painted, 180° door opening, wall mounting holes, acrylic viewing window.
