Lithium battery energy, full power can meet 200 times of exposure, Remote exposure controller > 50m,

Tube Voltage: 40kV~150kV,

Step Length: 1kV, Tube current: 10mA~500mA,

Load time range: 0.01s~6.3s,

Current time product range: 0.1mAs~200mAs,

Output nominal electric power: 50kW (400ma, 100kv, 0.1s)

Inverter input supply voltage: 450VDC/48VDC±10%,

High voltage transformer structure: non-working frequency.

Heat storage capacity 300khu.

360° Adjustable rotation angle.

Pixel matrix: 3072×3072; imaging area: 17×17″

Pixel size: 139μm, spatial resolution: 3.6lp/mm,

AD conversion 16bits; Battery Autonomy 8hours;

Imaging time:

preview image time 3 seconds, full image time 5 seconds.

Electromagnetic locking and fixation of cross arm during trolley motion;

Cross arm: front and back movement range is 250mm, up and down movement range is 1000mm;

Max. Focus height is 191cm, Min. Focus height is 91cm;

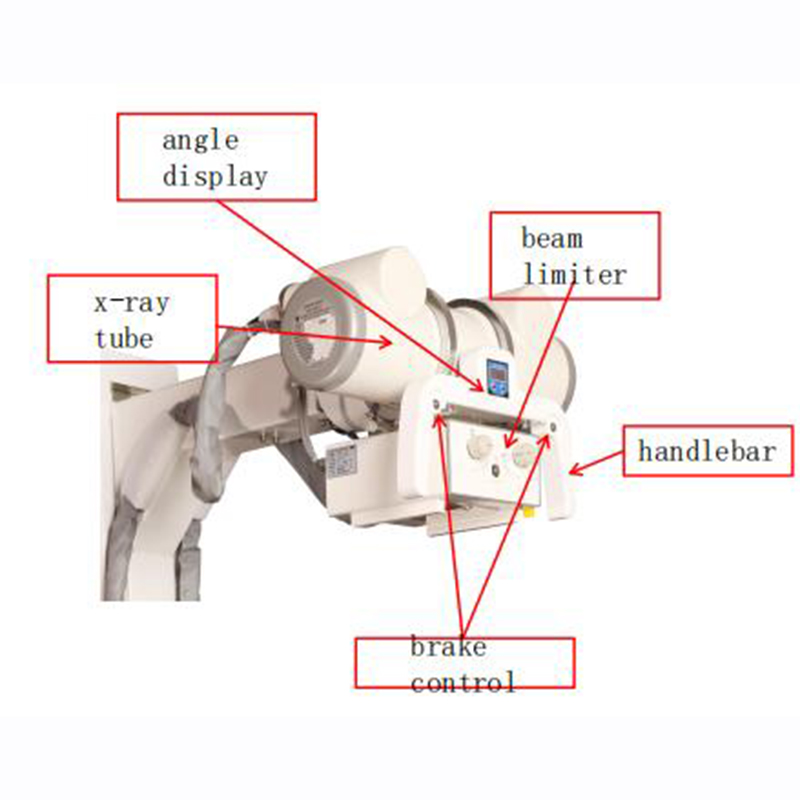

X-ray tube can rotate±90° ; head with locking mechanism can be locked at any angle.

The column can be kneaded at ±180° , and the electromagnetic brake with power loss can be locked and fixed;

Software

DICOM3.0 criteria, pre-selection tips for cast position;

preset of image brightness/contrast, window width/window position;

preset of organization equalization technology;

preset of image enhancement and sharpening technology; image segmentation, transmission, printing, etc.

Minimum computer performance requirements: CPU≥i3 hard disk ≥500 G memory ≥4G;
